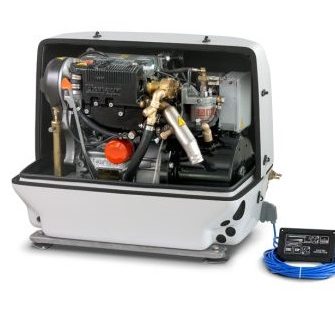

PAGURO 9000-8 KW-3000 RPM

Price excludes 5% UAE VAT

REQUEST PRICE

PAGURO 9000-8 KW-3000 RPM

  • REMOTE CONTROL

Remote control with LCD display.

Hour meter, load indicator, frequency / engine rotation speed.

Automatic shut-off for low oil pressure and / or overtemperature.

Quick connector and 15 meters of cable.

Automatic start.

  • SOUNDPROOFING CAPSULE

Acoustic insulation with reinforced composite fiberglass capsule and coating in high-density sound-absorbing material.

The capsule, composed of two upper and lower parts, allows installation even in narrow spaces.

Double anti-vibration system, inside 4 soft supports and 4 external semi-elastic supports.

PAGURO MARINE GENERATORS

Features
  • FLEXIBLE AND SILENT PERFORMANCE
  • SILENT
  • LIGHTWEIGHT AND COMPACT
  • SAFE

ALTERNATOR
ALTERNATOR MANUFACTURER V.T.E. – VOLPI TECNO ENERGIA, ITALIA
ALTERNATOR TYPE SYNCHRONOUS WITHOUT BRUSHES
CONTINUOUS ELECTRICAL POWER KVA 9 KVA (50Hz); 10 KVA (60Hz)
CONTINUOUS ELECTRICAL POWER KW 8 KW (50 Hz); 8,5 KW (60 Hz)
BATTERY CHARGE 12 V – 8 A
NUMBER OF PHASES 1
PEAK CURRENT 102/ 204 A
ALTERNATOR COOLING WATER, EXCHANGER IN STAINLESS STEEL AISI 316 L



ENGINE
ENGINE MANUFACTURER LOMBARDINI MARINE, ITALIA
ENGINE MODEL LDW 702
CYLINDERS NR. 2
ROTATION SPEED 3000 rpm (50Hz) e 3600 rpm (60Hz)
CONSUMPTION OF GAS OIL 0,35 lt./KW/h
COOLING SYSTEM FRESH WATER WITH HEAT EXCHANGER
DISPLACEMENT (cm3) n.s.
STARTING SYSTEM ELECTRIC A 12 V
REMOTE CONTROL Yes
COOLING PUMP SELFPRIMING



GENERAL SPECIFICATIONS
DIMENSIONS (mm) 720 X 460 X 620H
WEIGHT (CAPSULE INCLUDED) (Kg) 170
NOISE LEVEL dB 52 dB(A)
