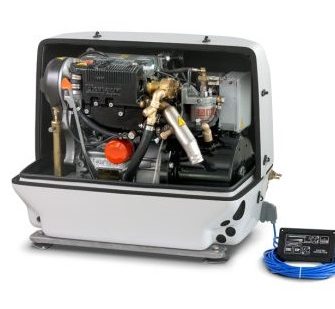

PAGURO 8500-8 KW-1500RPM

Price excludes 5% UAE VAT

REQUEST PRICE

Specifications

  • Remote control with LCD display.
  • Hour meter, load indicator, frequency / engine rotation speed.
  • Automatic shut-off for low oil pressure and / or overtemperature.
  • Quick connector and 15 meters of cable.
  • Automatic start.
  • SOUNDPROOFING CAPSULE – Acoustic insulation with reinforced composite fiberglass capsule and coating in high-density sound-absorbing material. The capsule, composed of two upper and lower parts, allows installation even in narrow spaces.Double anti-vibration system, inside 4 soft supports and 4 external semi-elastic supports.

PAGURO MARINE GENERATORS

Features
  • FLEXIBLE AND SILENT PERFORMANCE
  • SILENT
  • LIGHTWEIGHT AND COMPACT
  • SAFE

ALTERNATOR
ALTERNATOR MANUFACTURER V.T.E. SRL – ITALIA
ALTERNATOR TYPE SYNCHRONOUS WITHOUT BRUSHES
CONTINUOUS ELECTRICAL POWER KVA 8,5 KVA (50 Hz); 8,5 KVA (60 Hz)
CONTINUOUS ELECTRICAL POWER KW 8 KW (50 Hz); 8,5 KW (60 Hz)
BATTERY CHARGE 12 V – 8 A
NUMBER OF PHASES 1
PEAK CURRENT 102/204 A
ALTERNATOR COOLING EXCHANGER IN STAINLESS STEEL AISI 316 L



ENGINE
ENGINE MANUFACTURER LOMBARDINI, ITALIA
ENGINE MODEL LDW 1404
CYLINDERS NR. 4
ROTATION SPEED 1500 rpm (50 Hz) e 1800 rpm (60 Hz)
CONSUMPTION OF GAS OIL 0,35 lt./KW/h
COOLING SYSTEM FRESH WATER WITH HEAT EXCHANGER
STARTING SYSTEM ELECTRIC A 12 V
REMOTE CONTROL Yes
COOLING PUMP SELFPRIMING



GENERAL SPECIFICATIONS
DIMENSIONS (mm) 890 X 580 X 650H
WEIGHT (CAPSULE INCLUDED) (Kg) 200
NOISE LEVEL dB 49 dB(A)
